Provideo CVC-105CM

$108.99

Stock Level: 1

Product Information

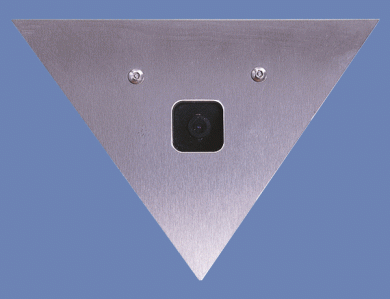

B/W Corner Mount Camera
(CVC-105CM) Corner mount 1/3" B/W CCD camera is housed in 18 gauge stainless steel and can be mounted in the corner of any room, hallway, elevator, or any 90 degree angle corner. It features a 3.6mm lens with a built-in electronic shutter and has a 0.02 lux rating with 420 line resolution. A 12V DC power supply is included.

Technical Specifications
Dimensions4"L x 9"W x 7"H
Electonic ShutterAuto 1/60-1/100,000 sec.
Housing18 Gauge Stainless steel
HumidityWithin 95 % RH
Image Device1/3" B/W CCD Image sensor
Lens3.6 mm
Lens Options2.5, 6, 8,12mm
Minimum Illumination0.02 lux -F- 1.6
Number of Pixels512 (H) x 492 (V) picture elements
Number of Pixels512 (H) x 492 (V) picture elements
Operating Temperature14ºF - 122ºF
Output ConnectionsVideo - RCA with BNC adapter, Power DC jack
Power Consumption150 mA
Power Requirement12V DC Power supply included UL and CSA listed
Resolution420 line
Scanning FrequencyHor. 15.75 KHz Vert. 60 Hz
Scanning SystemEIA standard 525 TV lines 60 fields/sec
Synchronizing SystemInternal
Video Output Level1.0 Vp.p 75 ohm
Video S/N RatioGreater than 46 dB
Weight1.4 lbs.

Product Code: CVC-105CM
