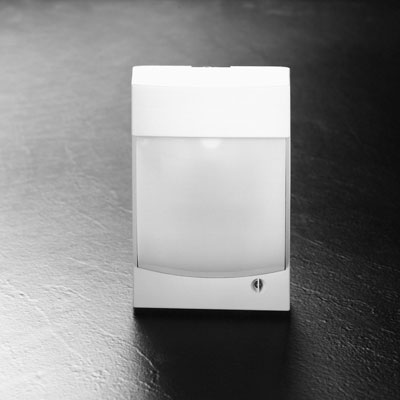

The AP633A offers the detection of motion for infrared targets
in selectable ranges extending 40 feet (12.2m), 80 feet
(24.4m), and 200 feet (61.0m). The viewing angle selection
allows the installer to select and delete any portion of the
coverage pattern to customize the optical performance of the
unit. The mounting plate of the unit is equipped with precise
adjustment screws to allow the installer to alter the horizontal
viewing point as much as 2 degrees to the left or right, up or
down. Features include:
•Step focus curtain
•Calibrated sensitivity
•Coverage up to 200-foot (61.0m) max.
•12 different protection patterns
•Precision step focus mirror optics
•Form C contacts
Product Code: AP633A
